Control Plane

When connecting a cluster to DevSpace Cloud, a control plane is installed into the cluster. You can view the status of the control plane of a cluster via Clusters 🡆 [cluster-name] 🡆 Cluster

Cluster Control Plane

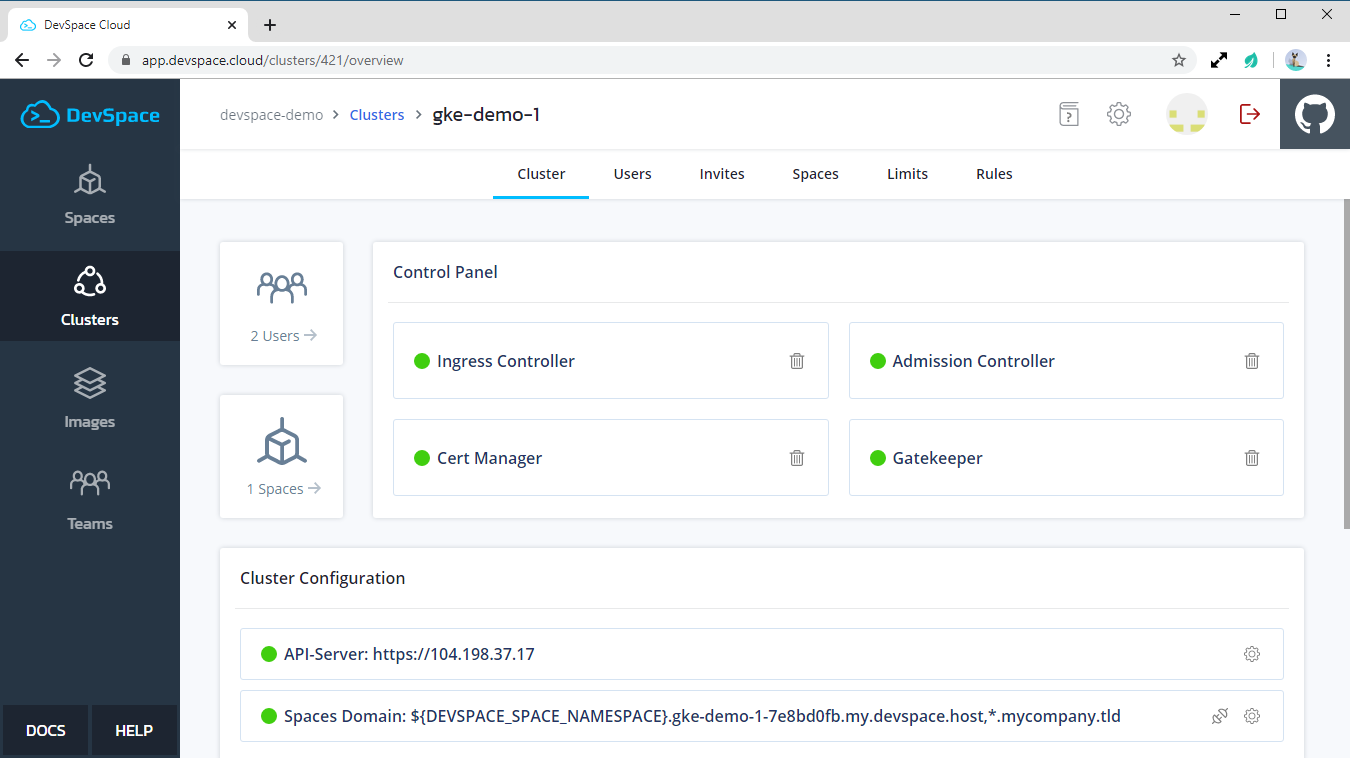

DevSpace Cloud UI - Cluster Control Plane

Components

Each control plane consists of the following components:

  • Ingress Controller for handling incoming traffic from (sub-) domains
  • Cert Manager for provisioning SSL certificates via Letsencrypt
  • Admission Controller for admission control
  • Gatekeeper for dynamic admission control

Upgrade Components

If a component is outdated, DevSpace Cloud will show an upgrade button next to the name of the component. Click on the button to upgrade the component.

Install Components

If a component is currently not installed, DevSpace Cloud will show an install button (Plus-Icon) next to the name of the component. Click on the button to install the component into the cluster.

Uninstall Components

If a component is currently installed, DevSpace Cloud will show an uninstall button (Trash-Icon) next to the name of the component. Click on the button to remove the component from the cluster.

Ingress Controller

Uninstalling and then reinstalling the ingress controller may change the IP address of the ingress controller which then needs to be updated in the DNS records of your Spaces domain.

Gatekeeper & Admission Controller

Uninstalling Gatekeeper and/or Admission Controller will lower your cluster security and lead to reduced isolation between cluster users and Spaces.
